Dimensions:
- KBAR-30: 30″ W x 19.7″ D x 13.25″ H
- KBAR-36: 36″ W x 19.7″ D x 13.25″ H
- KBAR-48: 48″ W x 19.7″ D x 13.25″ H
Chimney: 12.5″ W x 9.25″ D x 23.5″ HVenting Size: 6″ Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)

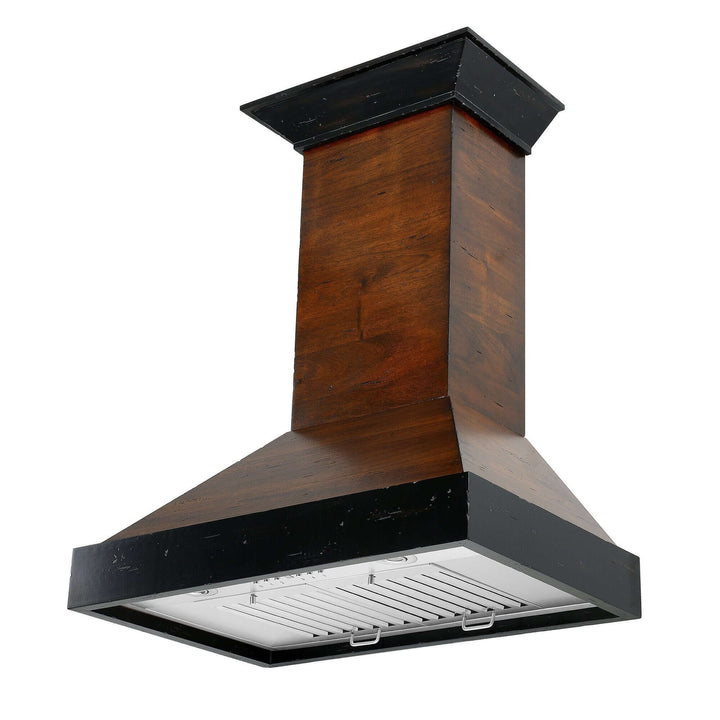

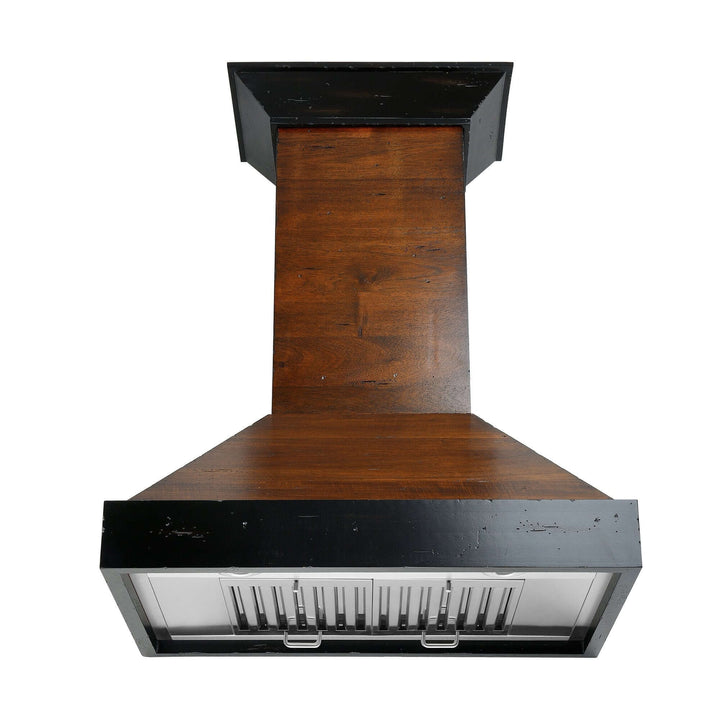

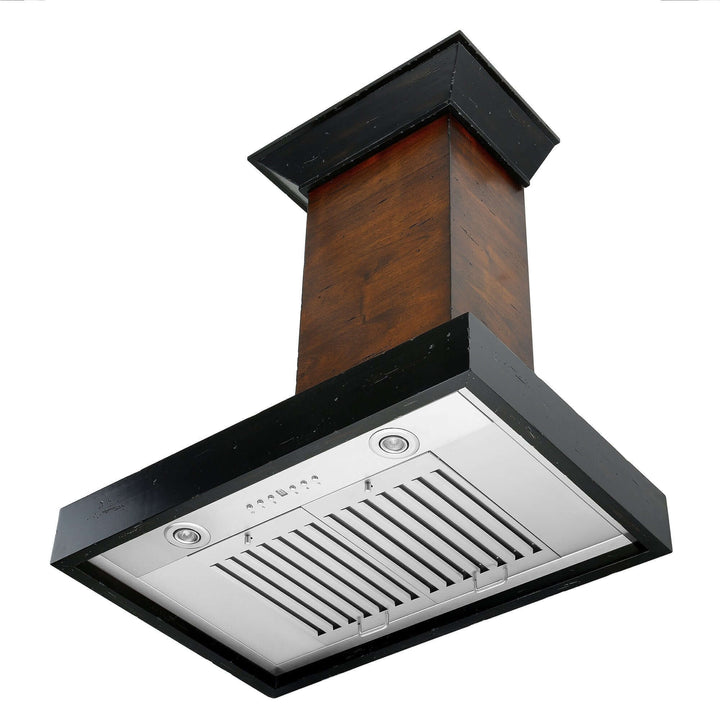

Filters: Stainless Steel Baffle Filters (Dishwasher Safe)

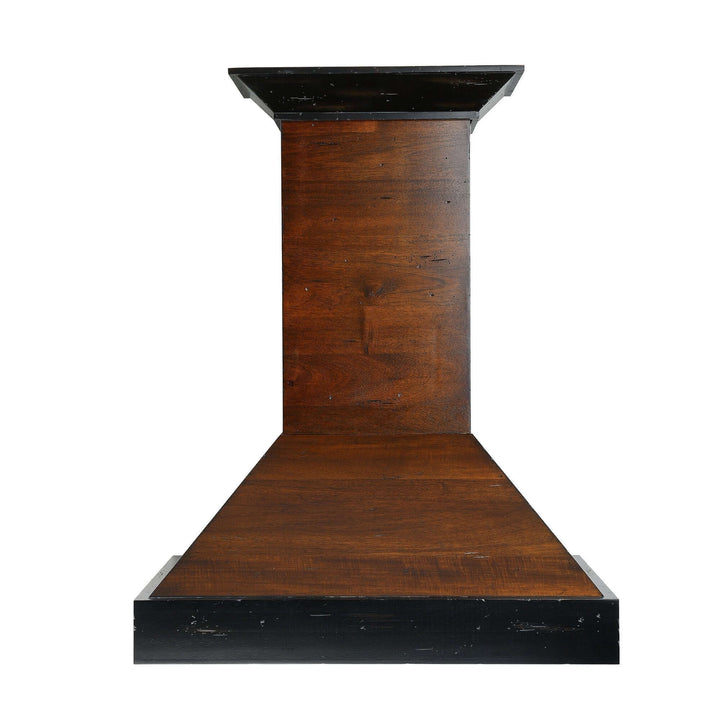

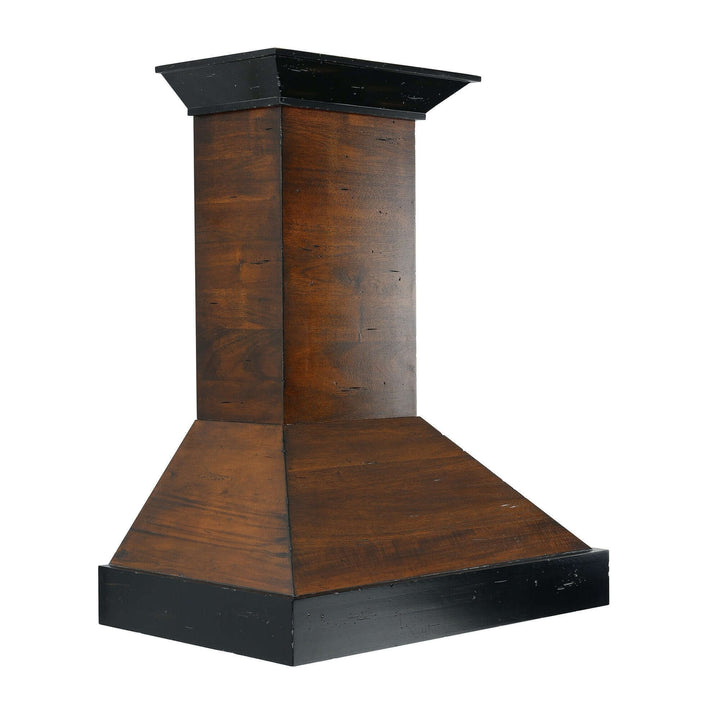

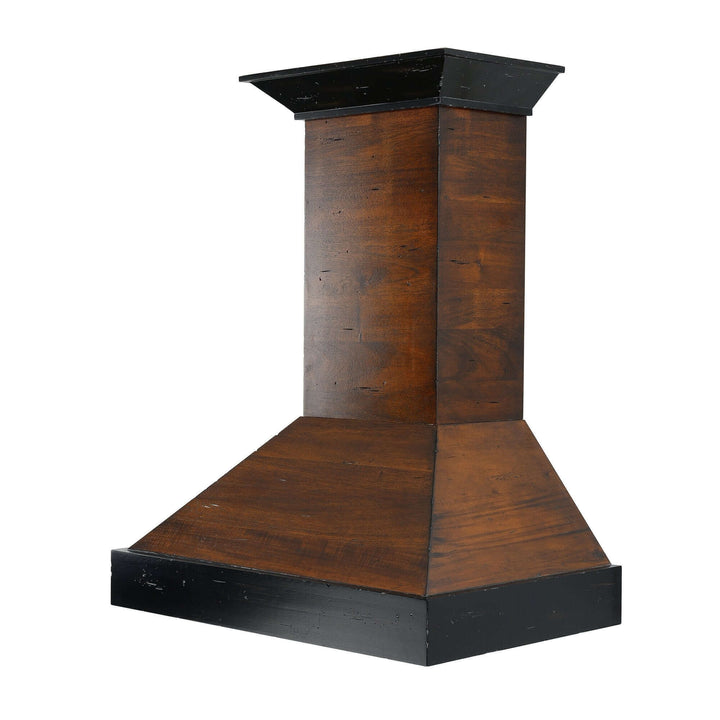

Material: Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua (Black) Front Band
Warranty: 3 Year Parts Warranty
Features:
- Model No. KBAR-30, KBAR-36, KBAR-48
- Chimney Extension: Model No. KBAR-E
UPC:
- KBAR-30: 817299021094
- KBAR-36: 817299021100
- KBAR-48: 817299021124
Certifications: ETL Listed
Installation and User Manual: Click Here to View
