Dimensions:
- 8KBB-30: 30″ W x 17.7″ D x 10.5″ H
- 8KBB-36: 36″ W x 19.7″ D x 10.5″ H
- 8KBB-42: 42″ W x 19.7″ D x 10.5″ H
- 8KBB-48: 48″ W x 19.7″ D x 10.5″ H
Chimney:
- 9.2″ W x 8.0″ D x 36″ H – Fits ceilings up to 9.5 ft. Must custom cut.
- Includes Crown Molding. Vented Crown Molding available for Ductless solution.
- 6 ft. Chimney Extension available for ceilings up to 12.5 ft.
Venting Size: 6″ Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor

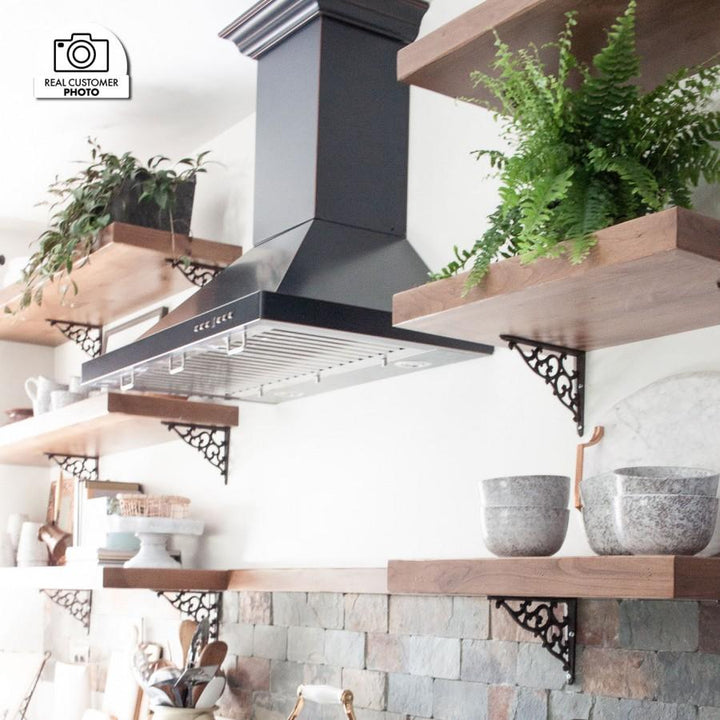

Mount Type: Wall Mounted
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: Oil-Rubbed Bronze Finish
Warranty: 3 Year Parts Warranty
Features:

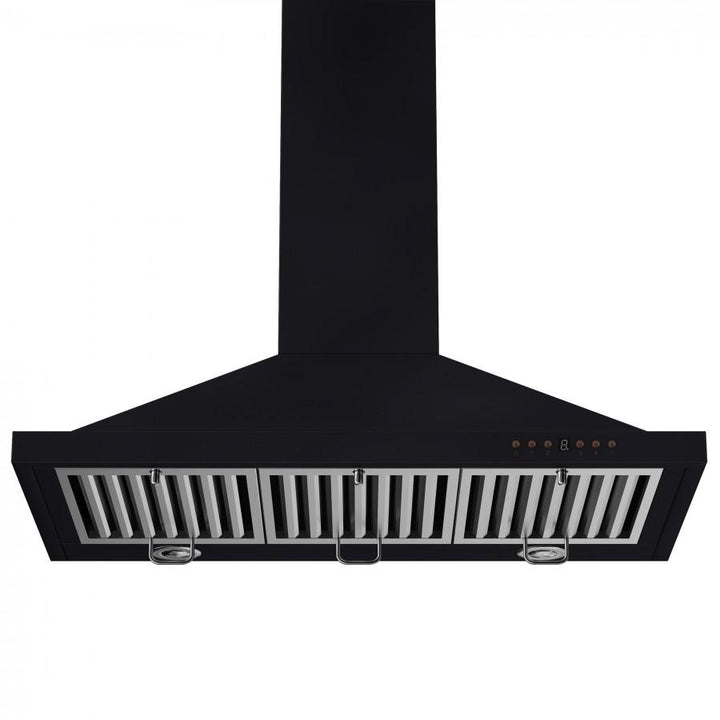

- Model No. 8KBB-30, 8KBB-36, 8KBB-42, 8KBB-48
UPC:
- 8KBB-30: 814118022386
- 8KBB-36: 814118022058
- 8KBB-42: 814118022409
- 8KBB-48: 814118022393
Certifications: ETL Listed
Installation and User Manual: Click Here to View
