Brand: ZLINE Kitchen and Bath

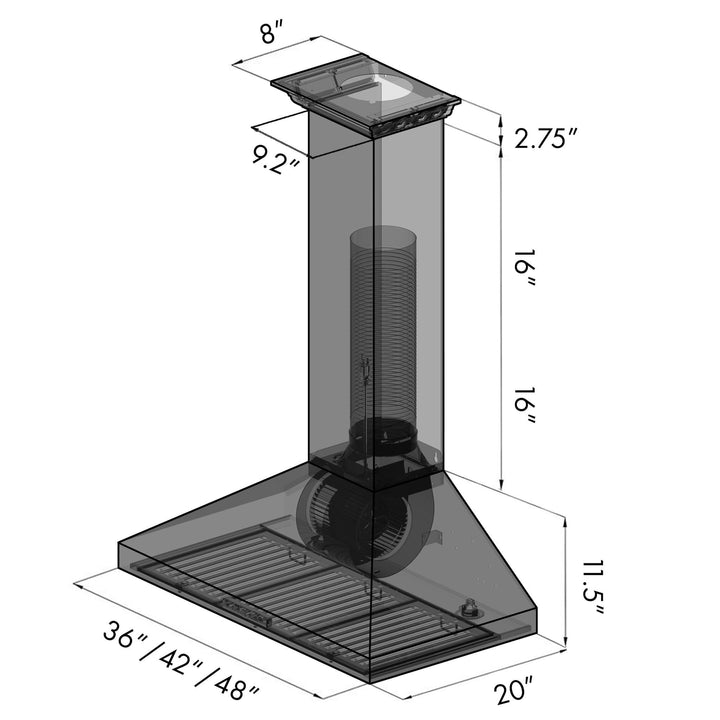

Dimensions:
- KL3CRN-BT-30: 29.5 in. W x 17.8 in. D x 12 in. H
- KL3CRN-BT-36: 35.4 in. W x 19.1 in. D x 12 in. H
- KL3CRN-BT-42: 42 in. W x 19.1 in. D x 12 in. H
- KL3CRN-BT-48: 48 in. W x 19.1 in. D x 12 in. H
Chimney: 9.2″ W x 8″ D x 16″ H (x2) (Telescoping)
- Chimney Short Kit and Extension(s) Available:
- Short Kit (2-12″) ~8 ft. Ceilings
- 1 PC Extension (1-36″ + 1-16″) ~9-10 ft. Ceilings
- 2 PC Extension (2-36″) ~10-12 ft. Ceilings
Venting Size:
- 6″ Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds

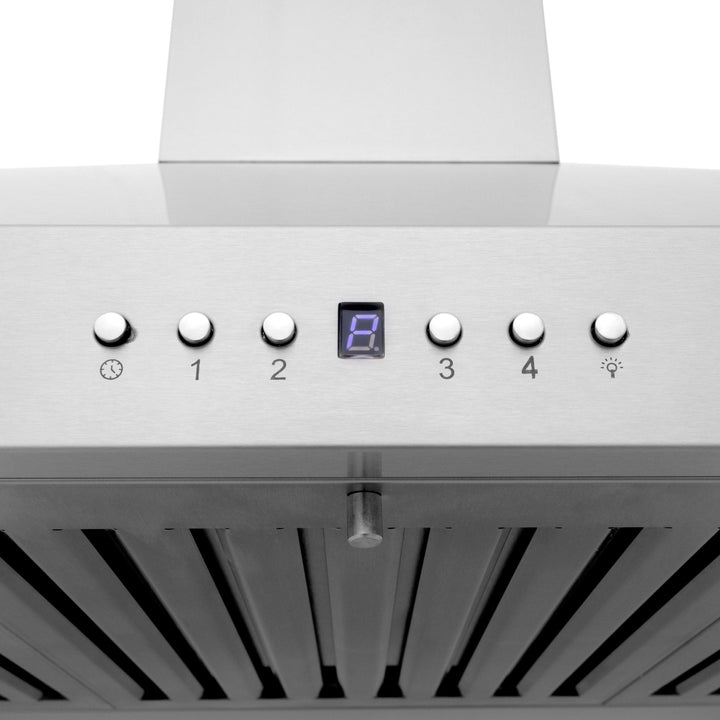

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features:
- Model No. KL3CRN-BT-30, KL3CRN-BT-36, KL3CRN-BT-42, KL3CRN-BT-48
UPC:
- KL3CRN-BT-30: 810021145990
- KL3CRN-BT-36: 810021146003
- KL3CRN-BT-42: 810021146010
- KL3CRN-BT-48: 810021146027
Certifications: ETL Listed
Installation and User Manual: Click Here to View
