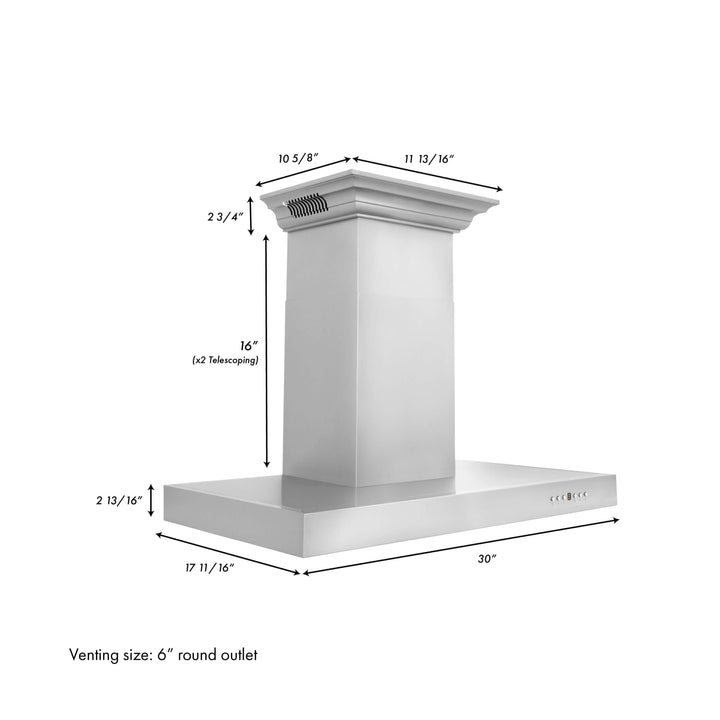

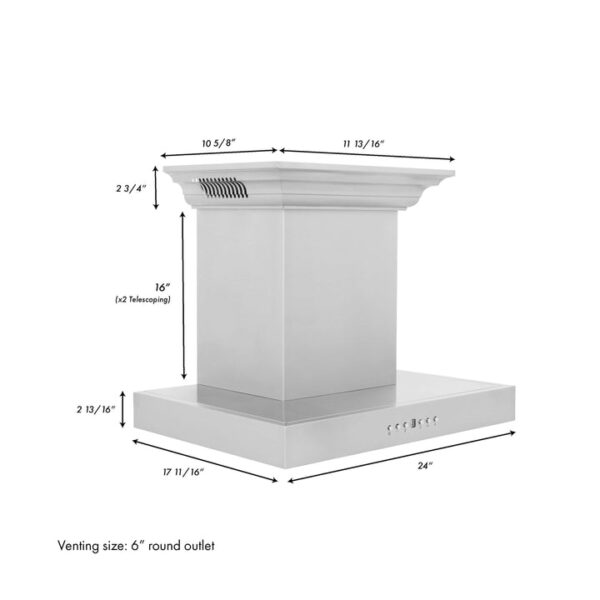

Dimensions:
- KECRN-BT-30: 30″ W x 17.7″ D x 2.8″ H
- KECRN-BT-36: 36″ W x 19.7″ D x 2.8″ H
- KECRN-BT-42: 42″ W x 19.7″ D x 2.8″ H
- KECRN-BT-48: 48″ W x 19.7″ D x 2.8″ H

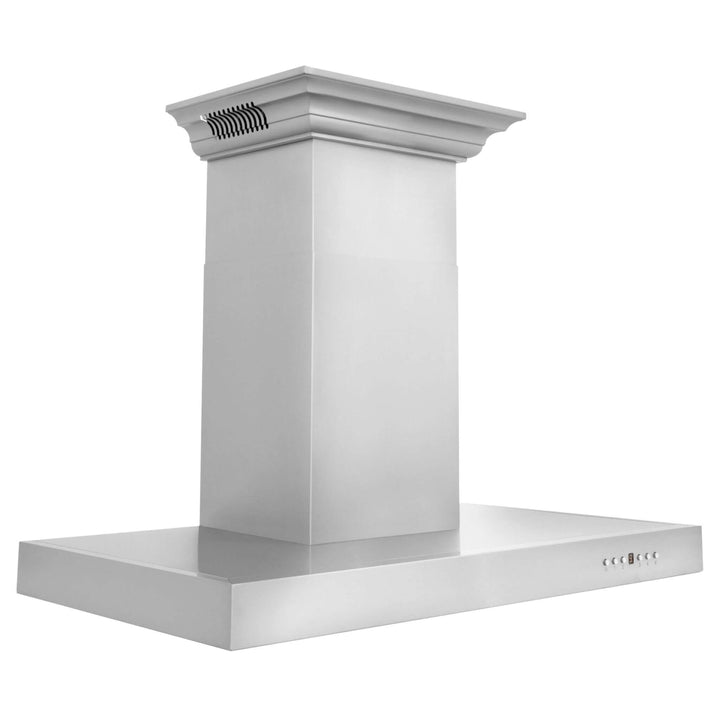

Chimney:
- 11.8″ W x 10.6″ D x 16″ H (x2) (Telescoping)
- Chimney Short Kit and Extension(s) Available:
- Short Kit (2-12″) ~7-8 ft. Ceilings
- 1 PC Extension (1-36″ + 1-16″) ~9-10 ft. Ceilings
- 2 PC Extension (2-36″) ~10-12 ft. Ceilings
Venting Size:
- 6″ Outlet (Transition piece to round ducting included)
- Charcoal Filters (not included) available for ductless/recirculating option.
Airflow (Q/L/M/H): 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds

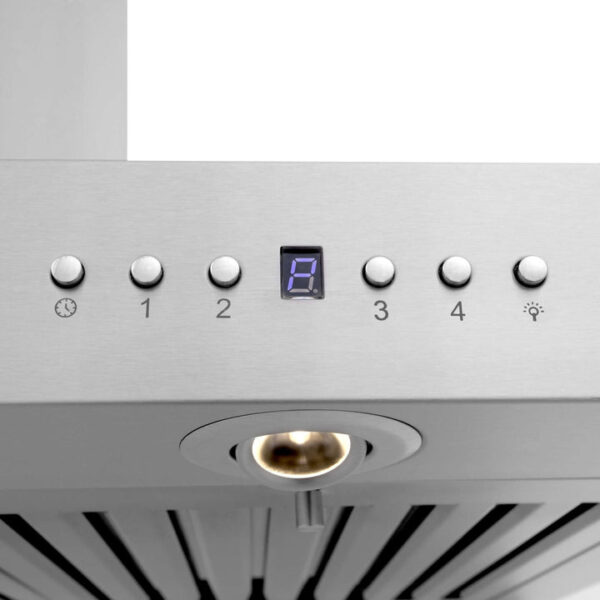

Control Type: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features:
- Model No. KECRN-BT-30, KECRN-BT-36, KECRN-BT-42, KECRN-BT-48

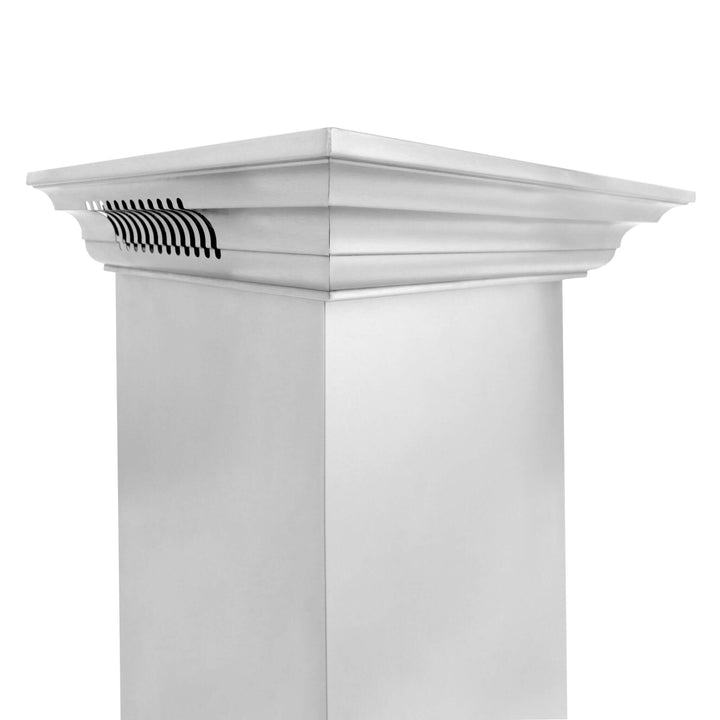

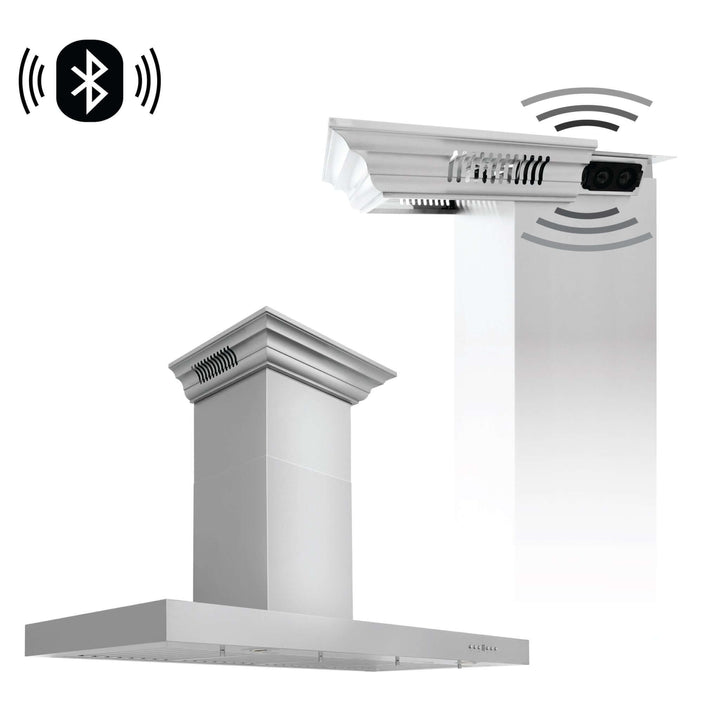

- ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
UPC:
- KECRN-BT-30: 810021146034
- KECRN-BT-36: 810021146041
- KECRN-BT-42: 810021146058
- KECRN-BT-48: 810021146065
Certifications: ETL Listed
Installation and User Manual: Click Here to View
